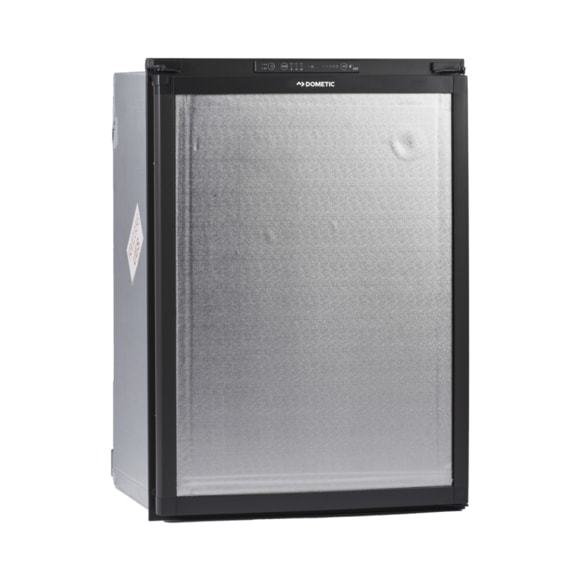

The Dometic RM 2356 is a performance enhanced refrigerator designed and manufactured for life on the road in all conditions. Giving users the ultimate freedom to travel by offering three energy sources – Gas, 12 V DC and 240 V AC.

The newly patented UES (Universal Energy Selection) control system is switchable from either Manuel Energy Selection (MES) or Automatic Energy Selection (AES). It is an efficient upright absorption refrigerator and freezer for installing into a caravan or motorhome.

NOTE: The installation and service must be done by a certified gas fitter please refer to the instruction manual. New patented UES (Universal Energy Selection) control system that is switchable between manual (MES) and automatic energy select (AES)

Same cut out size as most 3 cubic ft models but 10% bigger inside

User friendly control panel featuring LED indicator lights

Generous door and wall insulation for greater performance

Includes hinge kit to easily change the door's opening direction

Easy access to internal freezer compartment

Reversible door (supplied without door panel)

Refrigeration technology: Absorption

Fridge Dimensions: 577mm(d) x 766mm(h) x 556mm(w)

Weight: 28 kg

Gross volume 95.00L

Fridge storage volume: 86.10L

Freezer storage volume: 11.00L

To download the installation and operating manual click here

NOTE: The installation and service must be done by a certified gas fitter please refer to the instruction manual.

Specifications

Scope of delivery 1 refrigerator, 1 manual

Product Description 3-way refrigerator

Refrigeration technology Absorption

Dimensions product (DxHxW) 577 mm x 766 mm x 556 mm

Net weight 28 kg

Gross volume 95.00 l

Storage volume - total 86.10 l

Freezer storage volume 11.00 l

Input voltage (AC) 230-240 V

Input voltage (DC) 12 V

Rated input current (AC) 0.7 A

Rated input current (DC) 15 A

Rated input power (AC) 175 W

Rated input power (DC) 175 W

Input frequency: 50/60 Hz

Refrigerant, type: NH3

Refrigerant amount: 217 g

Noise (DIN60704-1 & 60704-2-14) 0.00 dB(A)

Climate class (EN62552) T

Gas pressure (DIN732) 30 mbar

Thermostat control: UES

Hinge type: Right hinged

Interior light: No

Certificates: AGA, CE, RCM, CB
