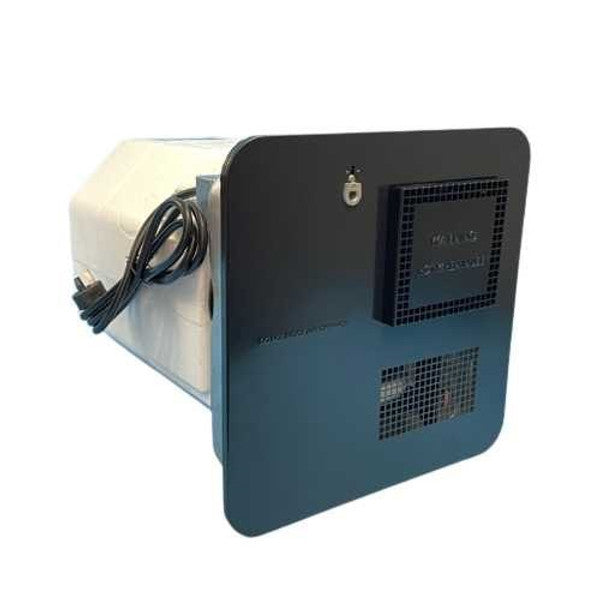

All Suburban Water Heaters are designed for easy installation, operation and maintenance. The limit switch and reset button are conveniently located in a housing behind the removable outer door. The electric heat element and combination drain plug/anode rod are also located there, making service a breeze.

Suburban uses a porcelain-lined, steel water heater tank with an anode rod to "absorb" the electrolytic action - just like your water heater at home. The 'sacrificial' anode should be checked yearly, but will usually last approx 2-3 years before needing replacement.

This heater also includes a 1440W 240V element. For higher recovery, both the gas and electric element may be used simultaneously.

Features:

Easy installation from outside
Removable outer door for easy access
Recovery rate of 40L per hour
Longer Life - sacrificial anode
Wall panel switch electronically ignites (via 12V) and controls the water heater
Specifications:

Heat Supply: Gas/240V
Set point temp: 54°C
Burner Rating: 12,000 btu (approx) 4kW
Recovery: 40L/hr at 45°C temperature rise
Water inlet: 1/2" BSP female thread
Weight: 15kg
Dimensions: 320H x 320W x 490D (allow an extra 50mm depth for plumbing fittings)
Fittings: 12mm John Guest fittings included
Please note:
Pump pressure must not be higher than 45 PSI
Installation must be done by a qualified gas fitter
